Using Mini-Max Algorithm to Play Tetris 🎮

So here’s a funny story - when my teacher first mentioned the “Mini-Max Algorithm,” I immediately thought of that AI company 😅. Had no clue it was actually a classic game theory algorithm!

But then he showed us this simple example: two players take turns moving the same piece either 1 or 2 steps forward. First one to reach the end wins. That’s when it clicked! 💡

You basically build a binary tree and find leaves that equal 0 or less. Count the branches - if it’s odd, player wins; if even, PC wins. Pretty neat, right?

This is actually super close to the real Mini-Max algorithm! The core idea is simple: calculate the worst-case scenario for your opponent while maximizing your own benefit.

Let’s think about it this way - at my turn, which move gives me the best advantage? 🤔

Let’s define our win conditions:

$$\begin{cases} 1 \text{ win} \\ -1 \text{ lose} \end{cases}$$

Mini-Max Decision Tree Structure 🌳

Here’s how the decision tree should look:

graph LR
  Root(("Root"))
  Root --> L(("Player 1"))
  Root --> R(("Player 2"))
  L --> LL(("AI 1"))
  L --> LR(("AI 2"))
  R --> RL(("AI 1"))
  R --> RR(("AI 2"))
  LL --> LLL(("..."))
  LR --> LRL(("..."))
  RL --> RLL(("..."))
  RR --> RLR(("..."))
  LLL --> LLLL(("1"))
  LRL --> LRLL(("-1"))
  RLL --> RLLL(("-1"))
  RLR --> RLRL(("1"))

Every time the AI moves, it calculates all possible outcomes. For example: if Player1 → AI1 leads to +1 but Player1 → AI2 leads to -1, then max("Player1 → AI1", "Player1 → AI2") is obviously Player1 → AI1. So the AI should take 1 step.

The cool part? The AI can also predict player moves and choose the branch where even if the player gets minimum benefit, the AI can still win! 🧠

Building a 1v1 Tetris Game 🎯

Now here’s where it gets interesting - let’s create a competitive Tetris game: Player VS AI!

The game continues until someone runs out of space to place pieces. It’s like Tetris meets territorial warfare! ⚔️

Scoring System - The Math Behind the Magic 🧮

To make Mini-Max work, we need a solid scoring system. Let me break down how we evaluate each possible move:

Finding the Perfect Coefficients 🎯

Now we need to weight these factors. Our scoring formula looks like this:

$$Score = (a, b, c, d) \begin{pmatrix} Height \\ Rows \\ Holes \\ Gradient \\ \end{pmatrix}$$

Instead of reinventing the wheel, I found that someone already solved this using Genetic Algorithms 🧬. Here are the magic numbers:

$$a = -0.510066 \\ b = 0.760666 \\ c = -0.35663 \\ d = -0.184483$$

Implementing Mini-Max in Tetris, First Try 🤖

Here’s where it gets tricky - Tetris pieces are random! So our decision tree height is usually just 1. But if we know the next few pieces in the sequence, we can go deeper.

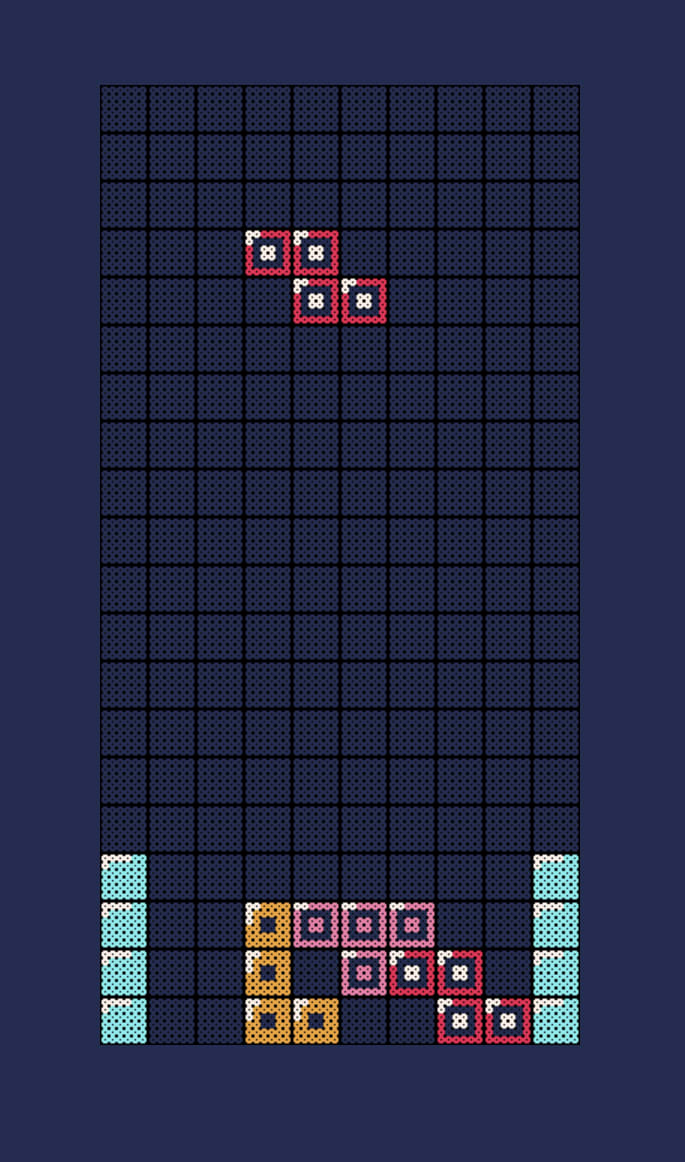

Move Analysis for Each Piece:

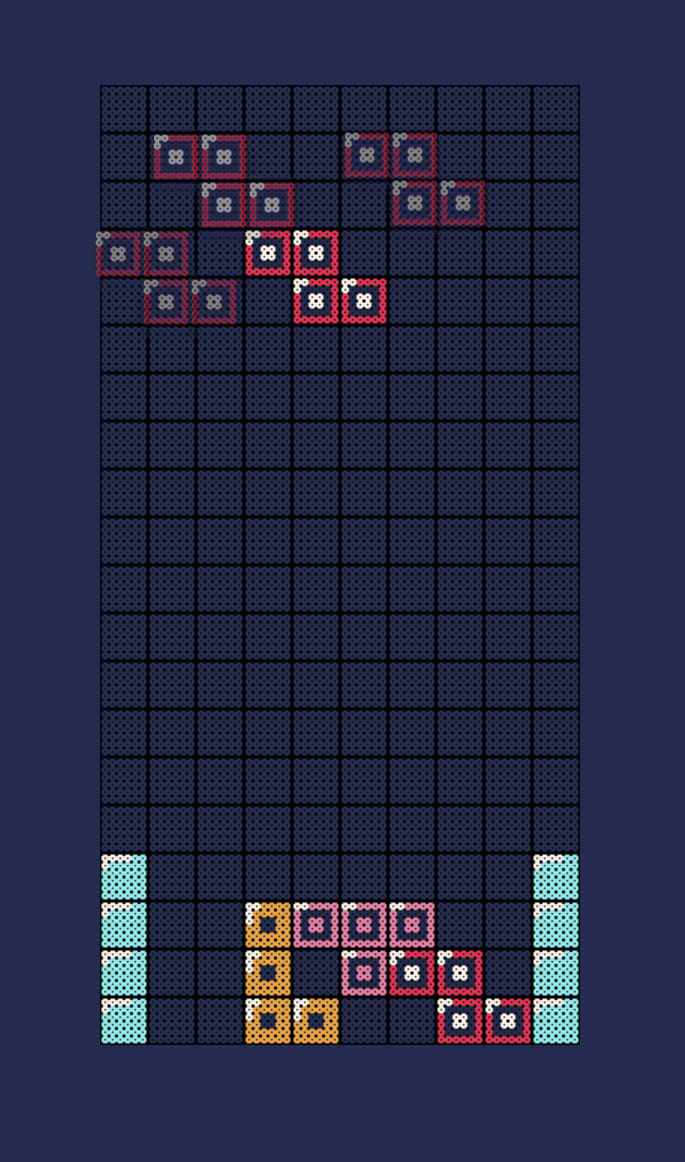

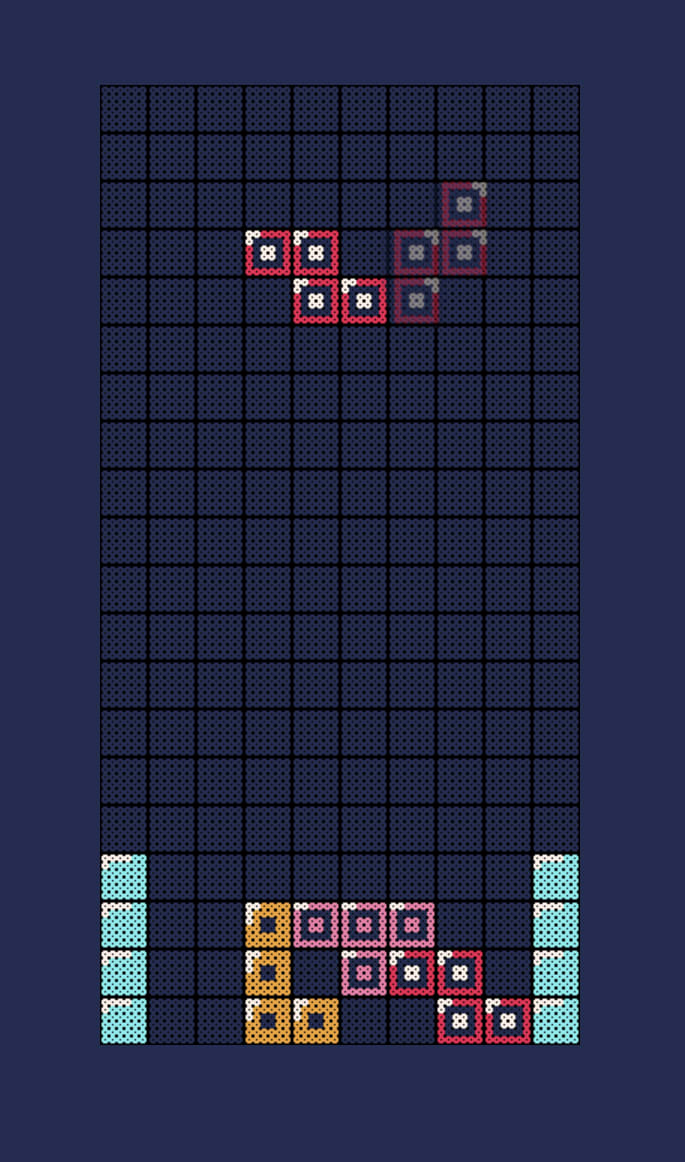

Horizontal Movement (9 positions) 🔄	Rotation Options (4 rotations) 🌀

For each piece, we typically have around 36 possible moves (9 positions × 4 rotations). Consider if we show a sequence of pieces not only one, the calculation will be $36^n$. Definately need pruning.

Another thing… this game currently only uses the Max part of the Mini-Max algorithm 🤯.
Yeah… I think I need to change my plan.

🎮 Change into Turns Game

Ohh, wait! I might have overcomplicated things 😅.
What if I make it a turn-based game? The player and the AI take turns.
Each turn, I’ll show two pieces:

• one for the current player,
• one for the opponent.

That way, the AI can actually use the full Mini-Max algorithm! 🧠✨

📜 Rules

So, what about the rules… 🤔

Classic Tetris scoring looks like this:

Row clear	Points
Single	100
Double	300
Triple	500
Tetris	800

There are also some high-level moves like T-Spin (when you rotate the T piece at the very last moment to clear rows).
I probably won’t implement it (too tricky to test 😅), but here are the points anyway:

Row clear	Points
Single	800
Double	1200
Triple	1600

And don’t forget Combos 🔥 — every time you chain clears, you get +50 points extra.

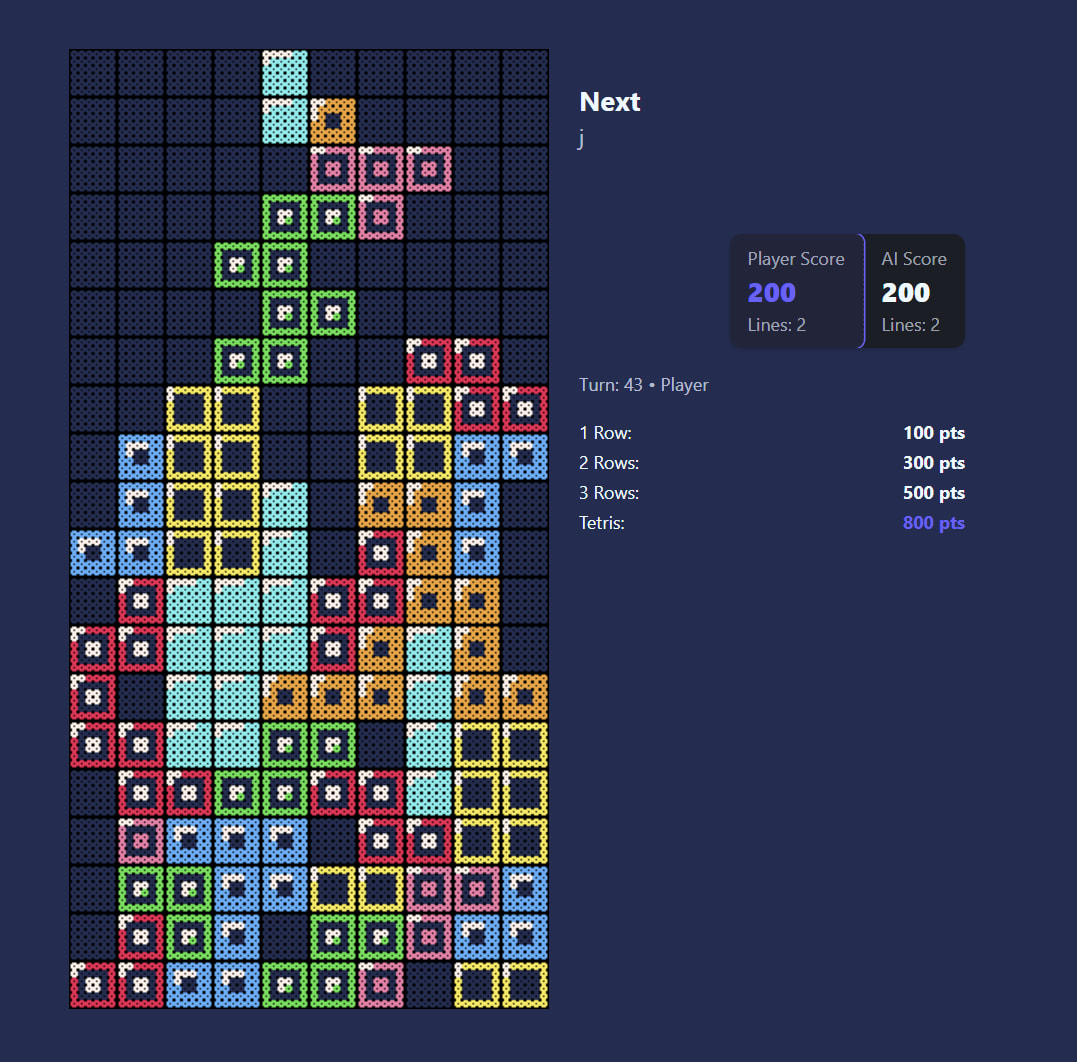

🎨 The UI – Upgrading Pixtris

Okay, coding time 🚀. Since there are already tons of Tetris clones out there, I didn’t reinvent the wheel. Instead, I picked an open-source project called pixtris (originally built with Pixi.js v4) and upgraded it to Pixi.js v8 + TypeScript. 👉 You can check out my fork here: github.com/gongbaodd/pixtris.

---

📊 Scoreboard with Lit.js

For the scoreboard UI, I used Lit.js. Why?

• It’s non-invasive, so I didn’t need to wrap the whole Pixtris project in a new framework.
• I could just drop a web component in.
• And honestly… I wanted to finally test Lit in a real project.

But here’s the verdict: 😅 It feels very 2018. Web Components sounded promising, but now we’re living in the hooks era. Also, Lit.js needed some extra TypeScript configs:

{
   "useDefineForClassFields": false,
   "experimentalDecorators": true
}

---

🎨 Styling with Tailwind + DaisyUI

Since Lit.js doesn’t come with a big UI ecosystem, I went with Tailwind + DaisyUI (the universal solution). ⚠️ But here’s the trap with Web Components: they don’t share stylesheets with the parent document. That means you gotta import CSS inline inside your component:

import daisyCss from "../style.css?inline"

---

🔄 State Machine

For state management, I kept it simple: just used nanostores. Lightweight and good enough for this project ✨.

---

🧠 Mini-Max Logic – Making Tetris Think

So here’s the fun part – I wanted to give Tetris some brains. I implemented a Mini-Max algorithm, commonly used in turn-based games. The idea:

• Every move you make (MAX) → your opponent (MIN) tries to minimize your score.
• You then choose the move that maximizes your outcome, assuming the opponent always makes the worst choice for you.

graph TD
A["Your moves (MAX)"]
    A --> A1[Move A]
    A --> B1[Move B]
    A --> C1[Move C]

    %% Move A branch
    A1 --> A1a["Opponent move A1 = 3"]
    A1 --> A1b["Opponent move A2 = 7"]
    A1 --> A1c["Opponent move A3 = 2"]

     %% Move B branch
     B1 --> B1a["Opponent move B1 = 4"]
     B1 --> B1b["Opponent move B2 = 6"]

     %% Move C branch
     C1 --> C1a["Opponent move C1 = 5"]
     C1 --> C1b["Opponent move C2 = 1"]

Opponent’s evil choices 😈:

• Move A → picks A3 = 2
• Move B → picks B1 = 4
• Move C → picks C2 = 1

So your best option is Move B (score 4).

---

🚫 But There’s a Catch

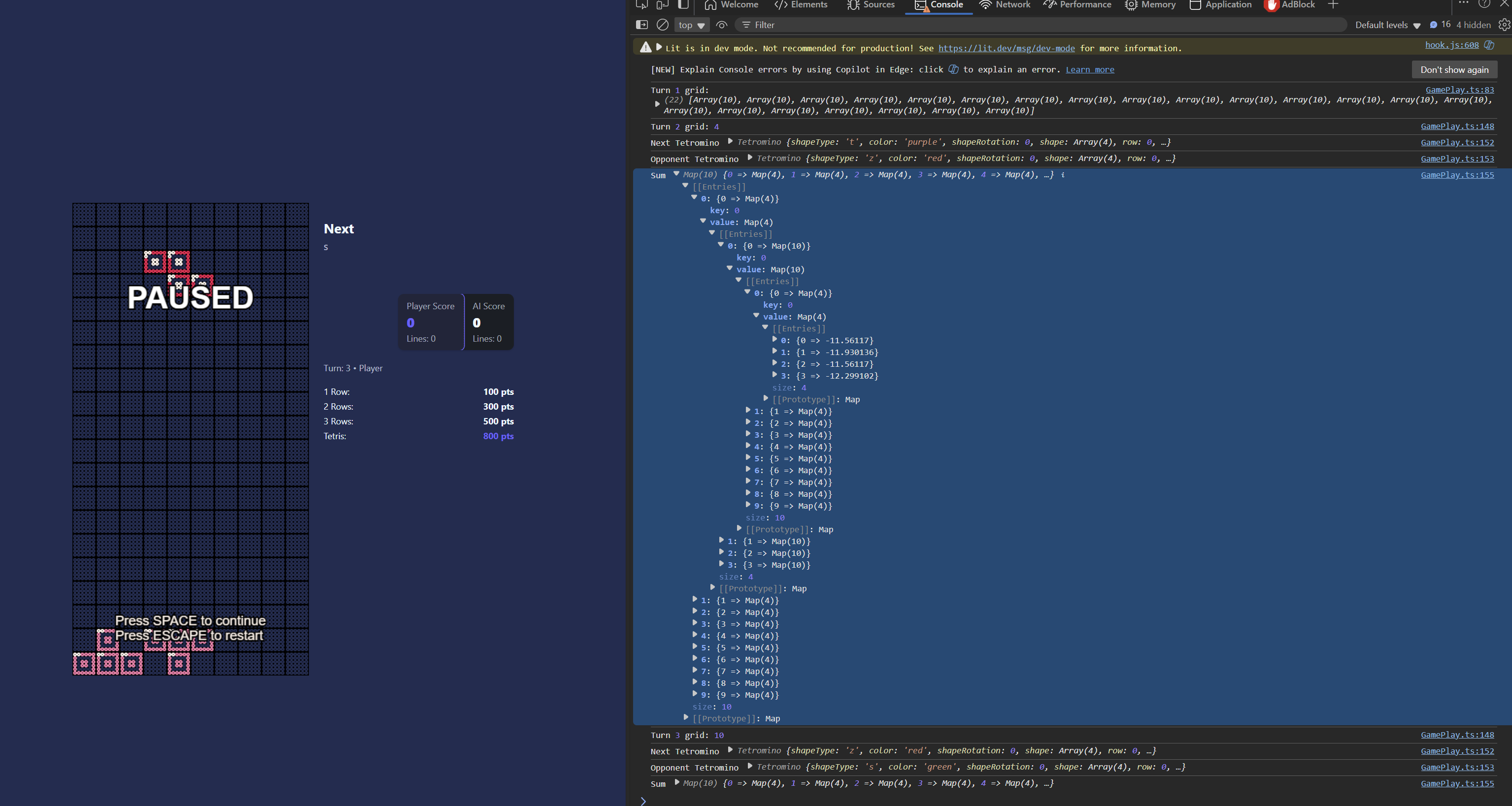

In Tetris, the opponent can “choose” invalid placements (aka -Infinity). That means the AI ends up being more like a chaotic gremlin 👾 instead of a strategic genius. To fix that, I just ignored all the -Infinity nodes. This way, the AI plays reasonably without sabotaging everything. Here’s what the decision tree looks like:

    type Branch = Map<number/*column num*/, Map<number/*rotation count*/, number/*score*/ | Branch>>;
    /**
	 * Build an evaluation map for all columns and rotations for a given tetromino.
	 * The returned Map has keys as column indices. Each value is a Map whose keys
	 * are rotation indices (0..3) and values are the evaluation score computed as:
	 *   -0.510066 * getHeightsSumIfDropped
	 * +  0.760666 * getClearedRowsCountIfDropped
	 * + -0.35663  * getHolesCountIfDropped
	 * + -0.184483 * getAdjacentHeightDiffSumIfDropped
	 * Invalid placements are scored as Number.NEGATIVE_INFINITY.
	 *
	 * This method does not mutate the provided tetromino or the board.
    */
    getPlacementEvaluationMap(tetrominoes: Tetromino[]): Branch

Applying the move inside spawnTetromino().

---

🐛 Known Bug

There’s still a sneaky async bug: sometimes the turn algorithm fails and the AI just takes over the game completely 🤖. I call it a feature now

– an evil AI mode. 💀

---

🎮 Try It Out

👉 Wanna play? Check it out here: pixtris.vercel.app

🎉 Tip: if it feels too fast, hit pause ⏸️ and think about your next move!
